- Compatible with nearly any LED lighting assembly available today
- Four independently controlled output channels
- Ethernet or RS232 configuration options
- SafeSense™ technology for safe overdriving
- SafePower™ for easy installation
- Small compact unit with optional DIN mounting available

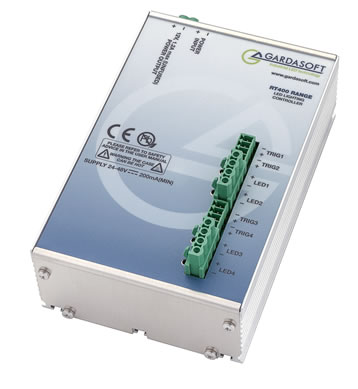

The RT range is Gardasoft's latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs.
To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse /strobe controllers are current sources, with the RT4XX controller range offering four output channels which are independently controlled.
| Specification | |
| User interface | RS232 |
| Output channels | Four independent constant current outputs with SafeSense™ |
| Output current | Up to 2A per channel continuous or 20A pulsed in steps of 5mA |
| Output Power | Max 30 W per channel |
| Trigger inputs | 4 opto-isolated digital inputs. Require 3V to 24V operation |
| Timing | From 1µs to 999 ms in steps of 1µs/100µs |
| Delay from trigger to pulse | From 3µs to 999 ms in steps of 1µs/100µs |
| Timing repeatability | Delay + Pulse up to 10ms: 0.1µs for pulse width and 3µs for delay. Otherwise 100µs |
| Output voltage | 0V to 40V |
| Supply voltage | Regulated 24V to 48V |
| Dimensions | 159mm long by 62mm high (excluding DIN fixing) |
| Weight | 400g |
| Mounting | Panel mounting. DIN rail mount option |
