- Compatible with nearly any LED lighting assembly available today
- Two independently controlled output channels
- Push button, Ethernet or RS232 configuration options
- SafeSense™ technology for safe overdriving
- SafePower™ for easy installation
- Small compact unit with optional DIN mounting available

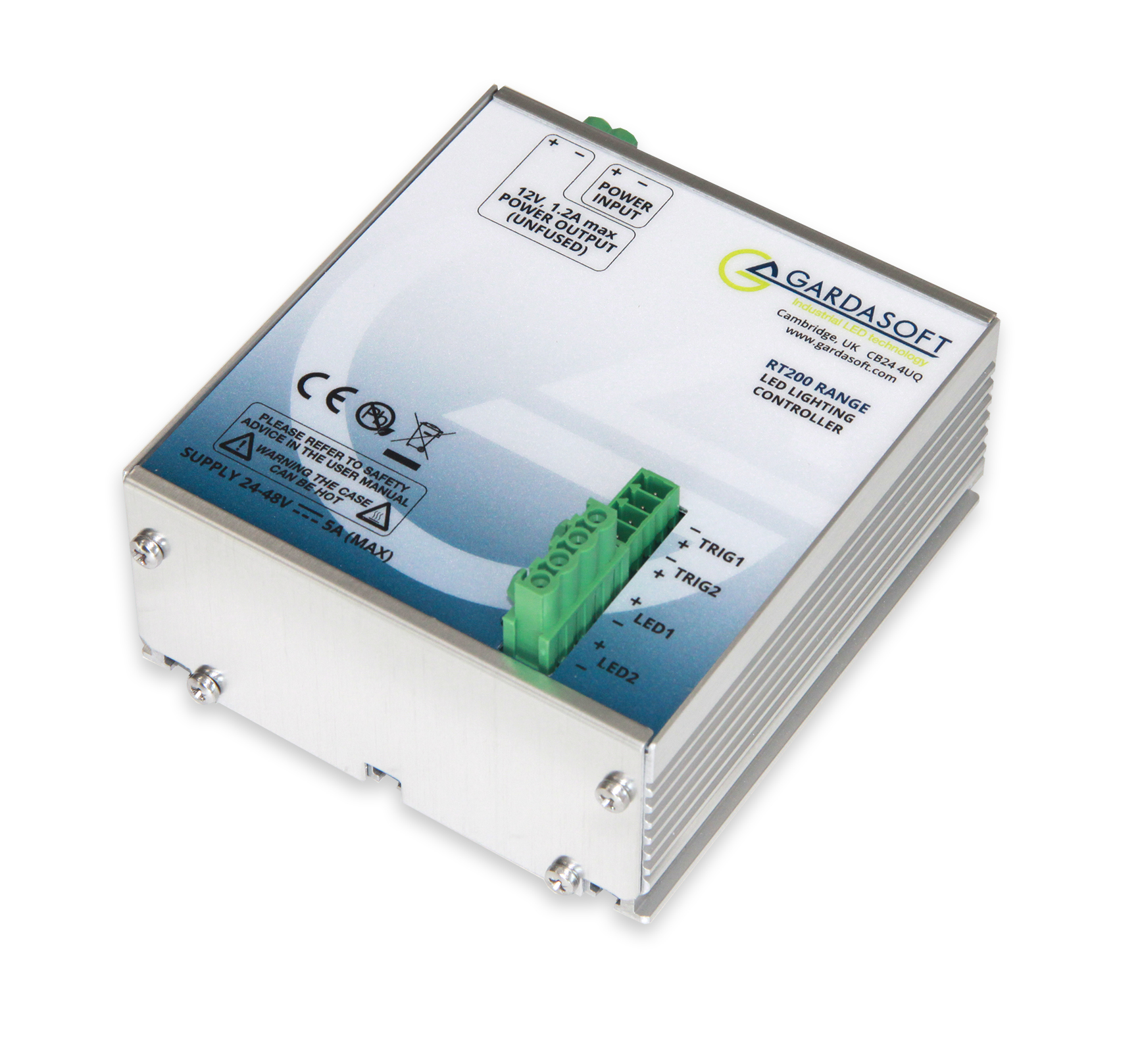

The RT range is Gardasoft's latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller.
All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT2XX controller range offering two output channels which are independently controlled.
| Specification | |
| User interface | Ethernet |
| Output channels | Two independent constant current outputs with SafeSense™ |
| Output current | From 0mA to 20A in steps of 5mA. Up to 2A per channel continuous or 20A pulsed |
| Output Power | Max 30 W per channel |
| Trigger inputs | 2 opto-isolated digital inputs. Require 3v to 24v operation |
| Timing | From 1µS to 999 ms in steps of 1µs/100µs |
| Delay from trigger to pulse | From 1µS to 999 ms in steps of 1µs/100µs |
| Timing repeatability | Delay + Pulse up to 10ms: 0.1µS for pulse width and 2µS for delay. Otherwise 100µS |
| Output voltage | 0V to 40V |
| Supply voltage | Regulated 24V to 48V |
| Dimensions | 112mm long by 97mm wide by 62mm high (excluding DIN fixing) |
| Weight | 300g |
| Mounting | Panel mounting. DIN rail mount option |
