-16 channel LED lighting controllers
- Pulsing up to 20A per channel
- 8 trigger inputs
- Ethernet or RS232 interface options
- Designed for new generation LEDs
- Compatible with nearly any LED lighting assembly available today
- 2A continuous output
- 4µs minimum pulse width

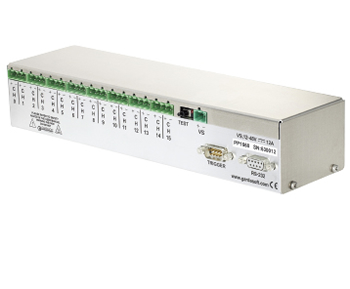

The Gardasoft PP1620 is a powerful 16-channel LED strobe controller designed for precise, high-speed lighting control in machine vision and automation systems. Each channel delivers up to 20 A pulsed or 2 A continuous output, providing exceptional brightness and stability for demanding imaging applications.
With microsecond-level timing, Ethernet connectivity, and intuitive browser-based configuration, the PP1620 ensures consistent illumination, repeatable results, and easy system integration. Ideal for multi-zone lighting, high-speed inspection, and research environments, it combines power, precision, and reliability in one compact unit.
| Specification | |
| User interface | Ethernet |
| Output current | F20A pulsed 2A continuous Steps of 6mA |
| Trigger inputs | 8 opto-isolated digital inputs. Require 5V to 24V |
| Lighting pulse width timing | 4µs to 1ms in steps of 1µs, variation <1µs 1ms to 1 second in steps of 100µs, variation <5µs |
| Lighting delay timing | 4µs to 1ms in steps of 1µs, variation <5µs 1ms to 1 second in steps of 100µs, variation <10µs |
| Output voltage | 1.5V to [supply voltage] – 1V |
| Supply voltage | 12V to 48V regulated DC |
| Dimensions | 280mm by 54mm by 78mm |
| Weight | 700g |
| Mounting | DIN rail or panel mounting. |
